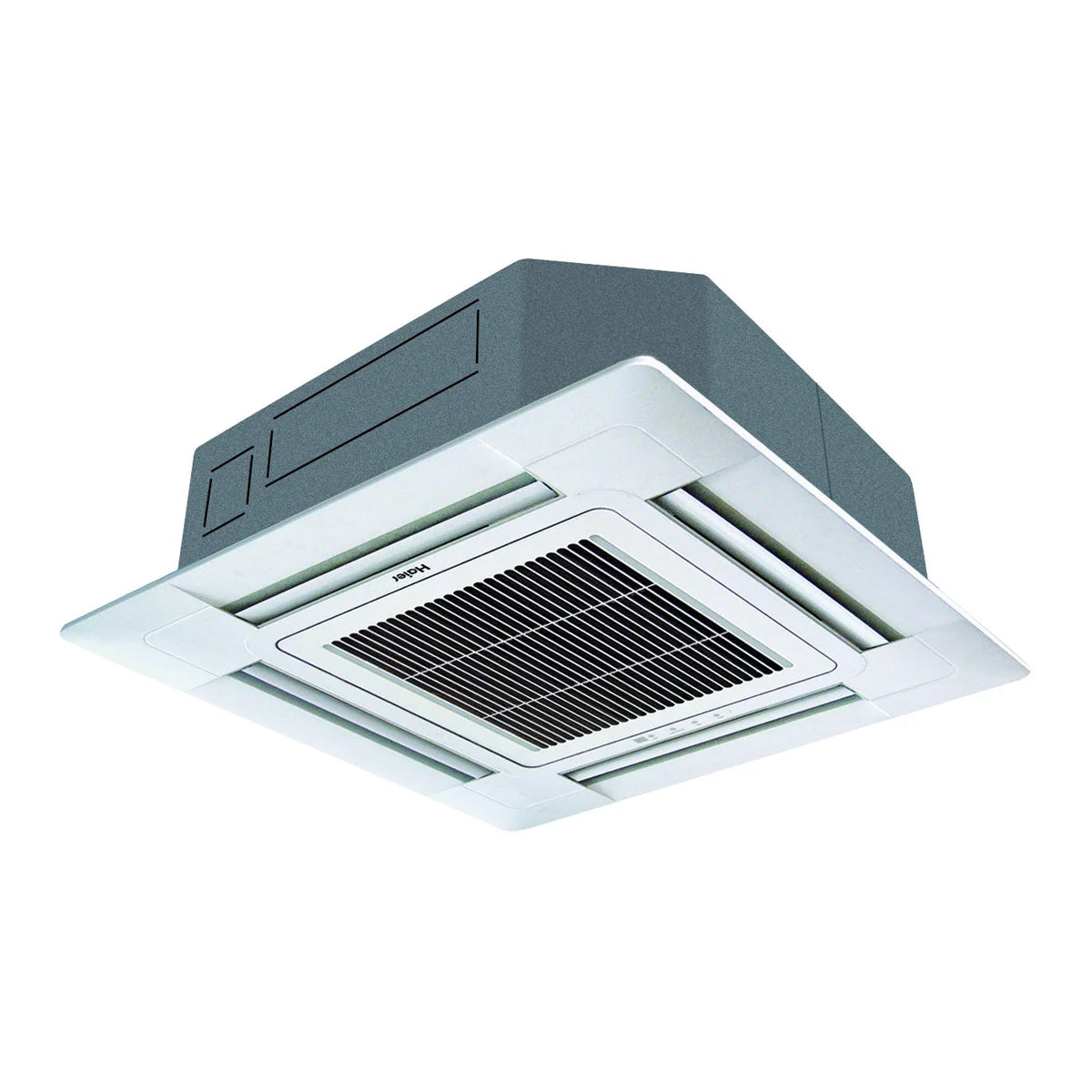

Haier 4 Ton Ceiling Cassette Non-Inverter AC Model HBU-48CE03/KB

The Haier HBU-48CE03/KB is a 4-ton ceiling cassette air conditioner designed to provide efficient cooling for large commercial or residential spaces. Its robust design and powerful cooling capacity ensure optimal temperature control.​

Specifications:

• Brand: Haier​
• Model Number: HBU-48CE03/KB
• Type: Ceiling Cassette Non-Inverter AC
• Capacity: 4 Ton ​
• Cooling Capacity: 48,000 BTU
• Air Circulation: 1,800 m³/h​
• Rated Power Input (Cooling): 4.92 kW​
• Power Supply: 3 Phase, 380-415V, 50Hz​
• EER (Energy Efficiency Ratio): 2.84 W/W​
• Refrigerant Type: R410A​
• Piping Connections:
  • Gas Side Diameter: 19.05 mm​
  • Liquid Side Diameter: 9.52 mm​
  • Maximum Pipe Length: 50 m​
  • Maximum Drop: 30 m​
• Dimensions:
  • Indoor Unit (W x D x H): 840 x 840 x 290 mm​
  • Outdoor Unit (W x D x H): 1,008 x 410 x 830 mm​
  • Panel (W x D x H): 950 x 950 x 60 mm​
• Weight:
  • Indoor Unit Net Weight: 31 kg​
  • Outdoor Unit Net Weight: 88 kg​
  • Panel Net Weight: 5.3 kg​​

This model's powerful cooling capacity and efficient design make it suitable for maintaining comfortable temperatures in large spaces.
